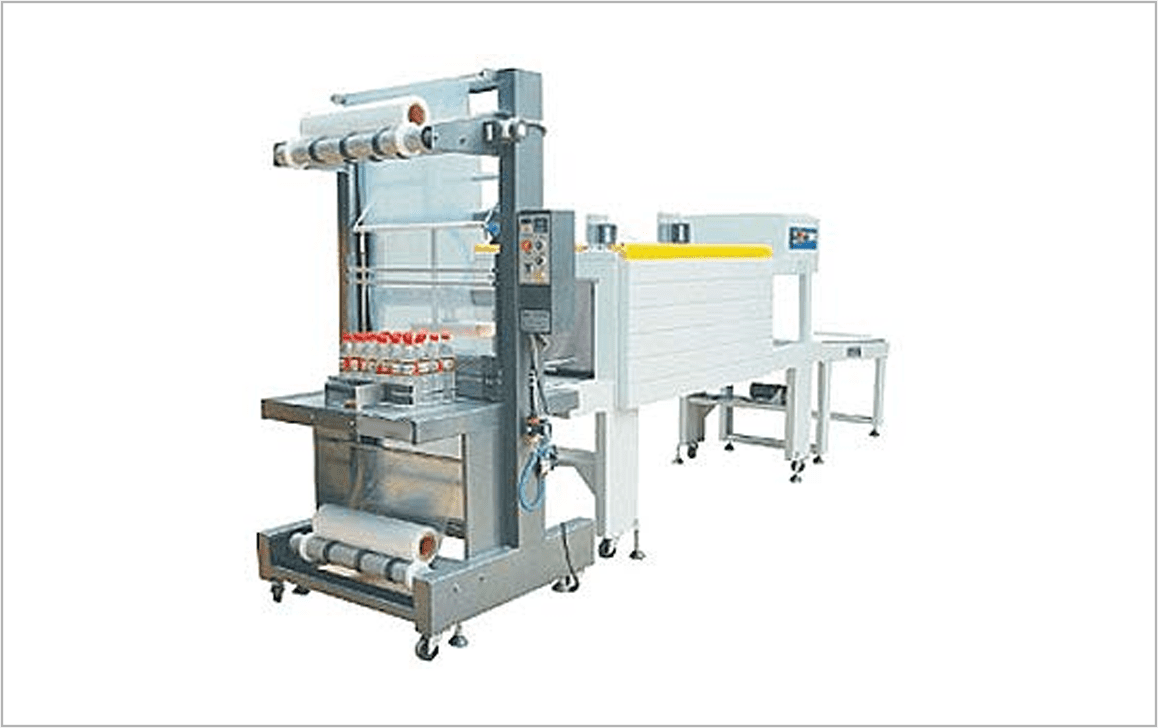

SPWS-6540 Web Sealer Machine can be pushed manually or pneumatically. After the process of sealing & cutting, the products enter the shrink tunnel automatically.
• The machine is suitable for shrink packing both single object and combined objects.
• Shrink packing for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer etc.
• It’s suitable for all kinds of shrink films such as PVC, POF, PP, PE etc
| Model | SPWS -6540 (Web Sealer) | SP5540L-PE (Shrink Tunnel) |
|---|---|---|
| Voltage (V/Hz) | 300 / 50 3 phase | 380 / 50 3 phase |
| Power Consumption (KW) | 1.5 | 21 |
| Packing Speed (pcs/min) | 0~12 | 0~10 |
| Max Packing dimension | 500 x 290 x 380 ( L x W x H ) (mm) | 1450 x 550 x 400 |
| Max sealing length (mm) | 650 | - |
| Height of conveyor (mm) | 800+50 (Adjustable) | - |
| Working air pressure (Kgf/m2) | 6 | - |
| Dimension (LxWxH) (mm) | 1370 x 920 x 1800 | 2550 x 850 x 1500 |
| Conveyor Loading(kg) | - | 40 |
| Heating Time (Minutes) | - | 10 |
| Cooling Time (Minutes) | - | 15 |
| Weight (kg) | 300 | 300 |
