Web Sealer Tunnel Machine

Web Sealer Tunnel Machine

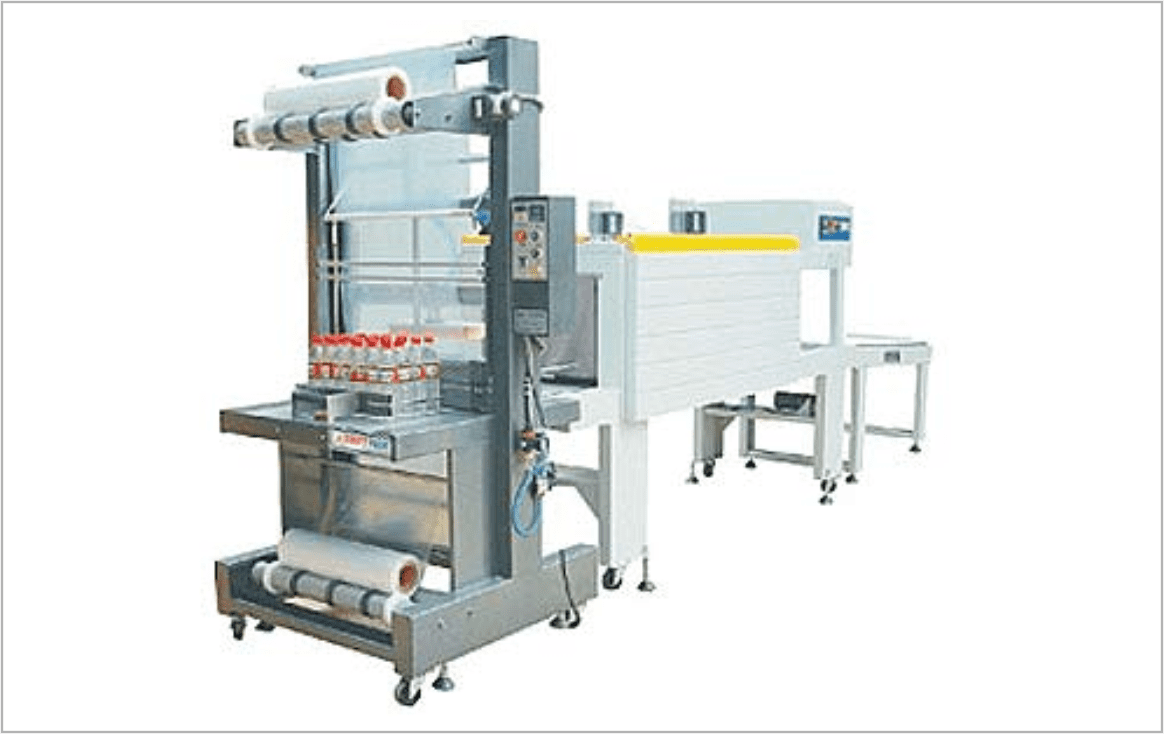

SVPTF-6540SA Web sealer Machine can be pushed manually or pneumatically. After the process of sealing & cutting the products enter the shrink tunnel automatically.

Features:

The Machine is suitable for shrink packaging both single object and combined objects.

Application:

• Shrink packing for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer etc.

• It's suitable for all kinds of shrink films such as PVC, POF, PP, PE etc.

Technical Specification:

Model SVPTF - 6540SA (Web Sealer) SVP5540M - PE (Shrink Tunnel)
Voltage (V/Hz) 300 / 50 3 phase 380 / 50 3 phase
Power Consumption (KW) 1.5 21
Packing Speed (pcs/min) 0˜12 0˜10
Max Packing dimension 500 x 290 x 380 ( L x W x H ) (mm) 1450 x 550 x 400
Max sealing length (mm) 650 -
Height of conveyor (mm) 800+50 (Adjustable) -
Working air pressure (Kgf/m2) 6 -
Dimension (LxWxH) (mm) 1370 x 920 x 1800 2550 x 850 x 1500
Conveyor Loading(kg) - 40
Heating Time (Minutes) - 10
Cooling Time (Minutes) - 15
Weight (kg) 300 300
