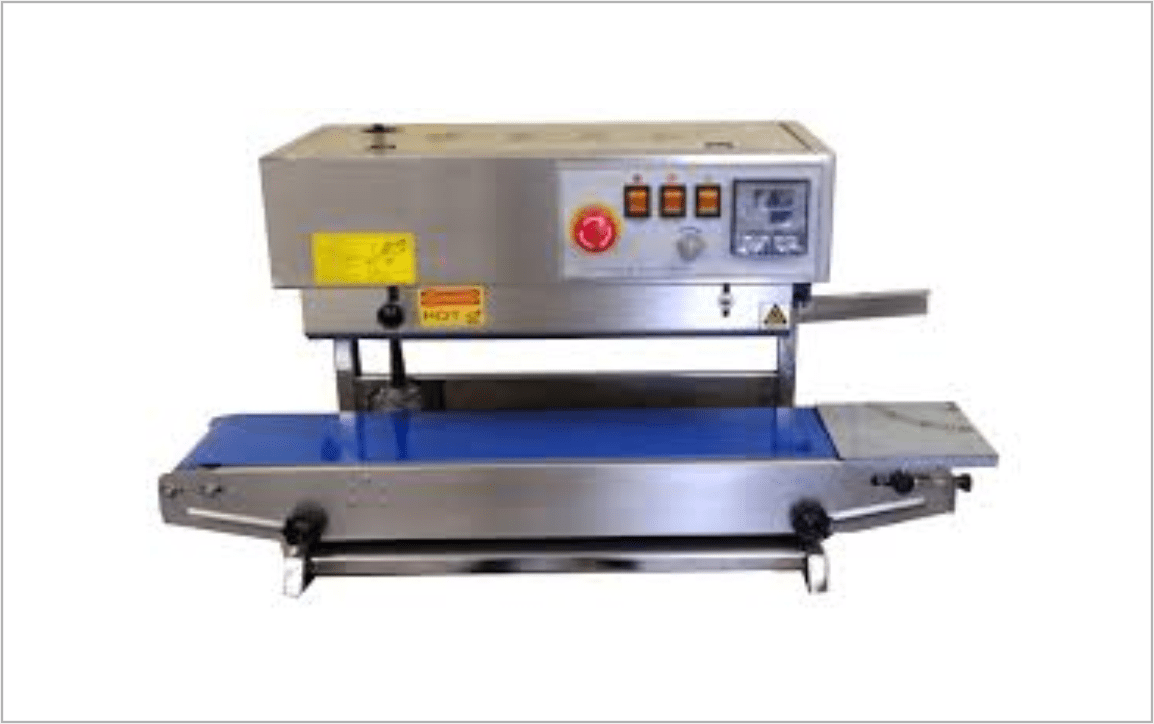

If you need to vertically seal thermoplastic bags on a low to medium-volume level. Continuous band sealers are suitable for sealing individual pouches/bags automatically. The machine has a variable temperature controller and speed control, to suit different grades of plastic materials. This sealing machine have different models available for different needs. Vertical and horizontal sealing is possible. Applications in various industries like food packaging, chemicals packaging, packaging of engineering and industrial items etc.
• Simple usage with high efficiency.
• Low energy consumption & labour saving.
• Protect product from dust, moisture, surface damage & pilferage.
• Model No SVP.770II is the verticals sealing model.
|Model No SVP.770II|
|Voltage (V/Hz)||AC 220/50 110/60|
|Sealing Power (W)||300 × 2|
|Sealing Speed (m/min)||0-12 (0-16)|
|Sealing Width (mm)||10|
|Temperature Range (°C)||0-300|
|Printing Type||Steel wheel for embossing printing (optional)|
|Distance from Sealing Center to Conveyor Table (mm)||150-270|
|Conveyor Table Size (L × W) (mm)||840 × 153|
|Max. Conveyor Loading for Single Package (kg)||≤1|
|Overall Conveyor Loading (kg)||≤3|
|External Dimensions (L × W × H) (mm)||840 × 380 × 450|
|Net Weight (kg)||28|
