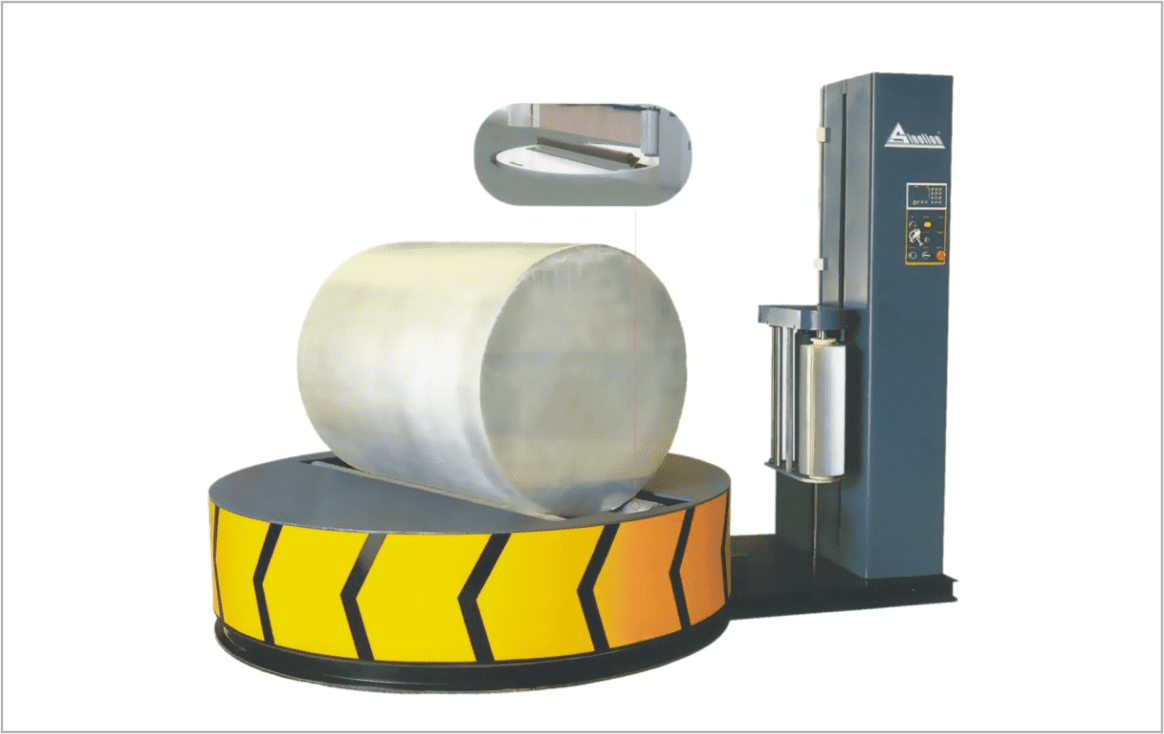

Machine introduction: Y Series Reel Wrapper is a machine designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels. It is ideal for reel axial wrapping - across the cylindric diameter then along the longitudinal axis, This packing method can form a cocoon type packing. It is completely Moisture Water & Dust proof packing and protects the products.
| Model | Y2000F |
|---|---|
| Roll Diameter (mm) | 600 - 1500 |
| Roll Width (mm) | 500 - 1600 |
| Roll Weight (max) | 2000 kg |
| Packing efficiency | 20-30 rolls/hour |
| Model | Y2000F |
|---|---|
| Dia. of turntable | 2000mm |
| Turntable speed | 3-12rpm |
| Turntable Height (surface of turntable to floor level) | 460mm |
| Power supply | 2.0 kw / AC380v |
| Machine weight | 1080 kg |
| Dia. of roller | 150mm |
| Roller center distance | 420mm |
| Machine dimension (mm) | 2895 (L) x 2000 (W) x 2300 (H) |
| Air consume (if have reel ejection system) | 1000m1/min |
