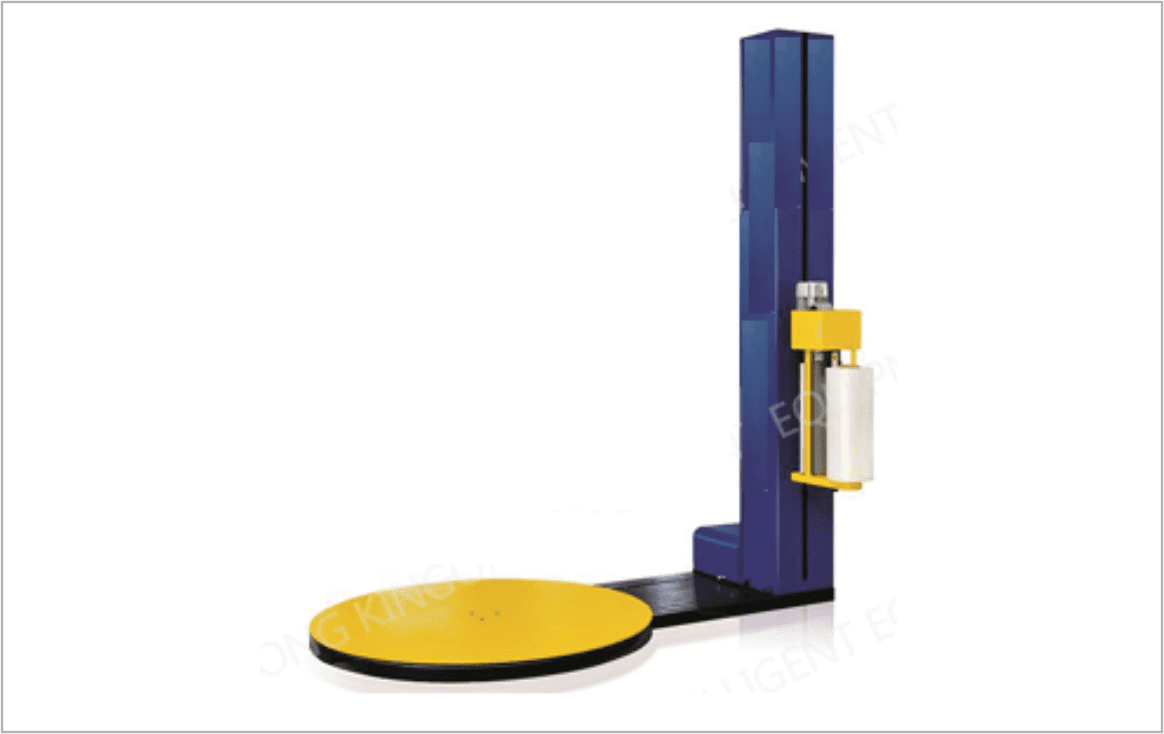

K1100 pallet wrapping machine was designed base on higher performance and lower noise, higher protect level and lower power consumption, during 1-year research and test, this new model bring a big surprise to us!
• Machine run more smoothly with longer service life and lower failure rate.
• Laser positioning cutting process and welding technology for machine frame.
• Better stability, lower noise, turntable rotary more smoothly.
• Convenient for spare parts replace and maintenance.
• Easy operate on PLC by setting the functional parameters.
• Back to home position automatically before and after package.
• Freely adjust the set parameters to meet the Needs of differentiate packaging.
• Film carriage with anti-press foot unit.
• Closed electrical cabinet integrated into the mast, save space and higher protect level.
• Roller under the turntable could adjustable by itself to suit different products so that the noise is very low.
• Very easy to change roller which under the turntable.
• Manual carriage Up/down control on the HMI.
• Machine designed with Europe standard, meeting the CE requirement.
• All mechanical motion start and stop softly.
• Very easy to install in customer's factory.
• Modular design, ramp, top plate is optional
| Model | K1100 |
|---|---|
| Wrap size (L X W) | (500-1200)mm X (500-1100)mm |
| Wrap height (max) | 2400mm or customized |
| Turntable diameter | 1650mm |
| Turntable rotary speed | 0-12rpm adjustable by inverter |
| Turntable height | 78mm |
| Turntable weight capacity (max) | 3000Kg |
| Film carriage | Pre-stretch / customized stretch ratio: 200%-400% Mechanical -stretch / stretch ratio:150% |
| Wrap efficiency | 20-40 Pallets/Hour |
| Mast(lift system) | Film carriage lift speed adjustable by inverter |
| Control system | PLC control |
| Total weight(max) | 450kg |
| Power/voltage | Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ |
| Machine size | 2460mm X 1650mm X 2700mm |
| Ramp | Optional |
| Top plate(Pneumatic) | Optional |
| Name | QTY. | Brand | Remark |
|---|---|---|---|
| Motor | 3 | WanXin (Taiwan) | CE |
| Inverter | 2 | Schneider (France) | CE |
| HMI | 1 | Xinjie (China) | CE |
| Photoelectrical switch | - | Schneider (France) | CE |
| Proximity switch | - | OMRON (Japan) | CE |
| Contactor | - | Schneider (France) | CE |
| Pneumatic system | - | ZC (China) | CE |
