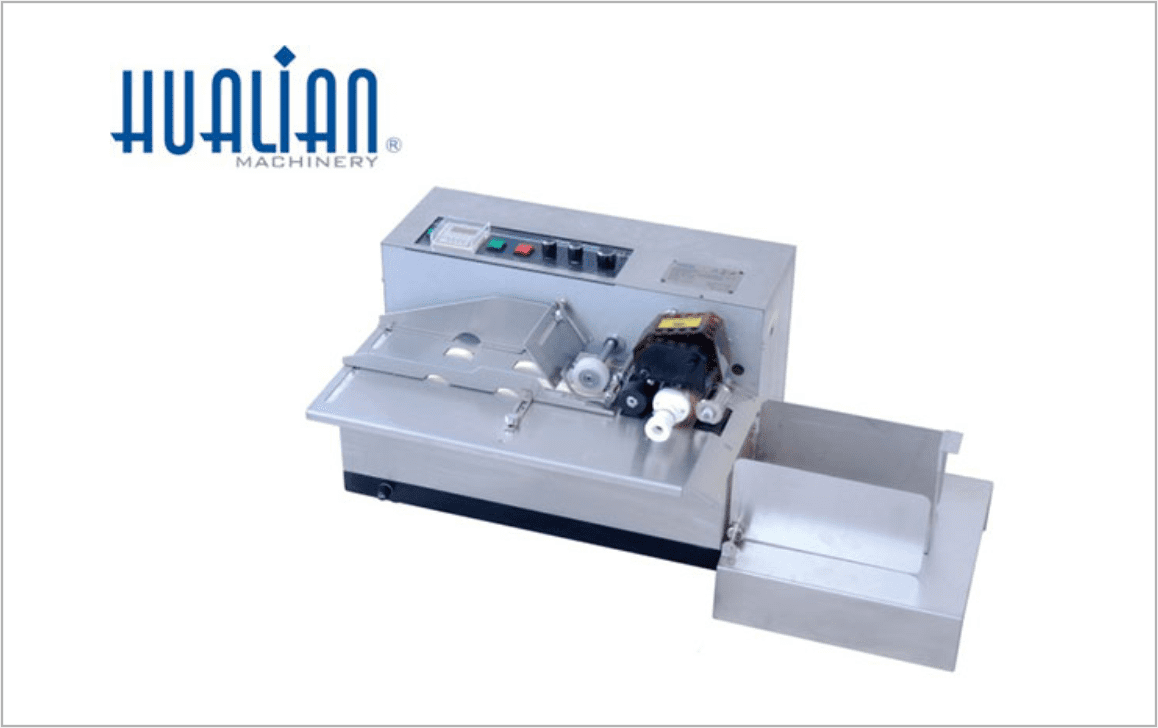

Dry Ink Batch Coder

Dry Ink Batch Coder


• Adopt photoelectric mechanism technology, featuring automatic temperature control, auto counting & adjustable print position.

• Adopt solid-ink coding with selectable color, featuring legible printing, instant printing-instant drying and strong adhesion.

• With dual-use print wheel, suitable for R type and T type arrangement. T type arrangement: 1-11 lines, 1-10 characters/Line; R type arrangement: 1-8 lines, 1-8 characters/Line.

• There're types in size of 1.5mm, 2mm, 2.5mm & 3mm for selection.

• Fit for printing codes on paper, thin paper board, plastic film and aluminum foil.

• The machine is automatic, with high speed & high efficiency up to 300pcs/minute.


Model MY-380F
Voltage(V/Hz) AC 220/50 110/60
Power(W) 180
Solid Ink Roller(mm) 35 × 32
Printing Speed(pcs(/min) ≤300
Object Size(mm) L:50-500 W:30-190
Max. Printing Line T type (10.5PT):11 lines(Max.10 characters/line) R type (10.5PT):8 lines(Max.11 characters/line)
Printing Size(mm) Single side 60-250
Type Size(mm) 2.5×1.5(8PT) 2×2.5(9PT) 3×2(10.5PT) 5×2.5(18PT)
External Dimensions(L × W × H)(mm) 440 × 345 × 260
Net Weight(Kg) 23
