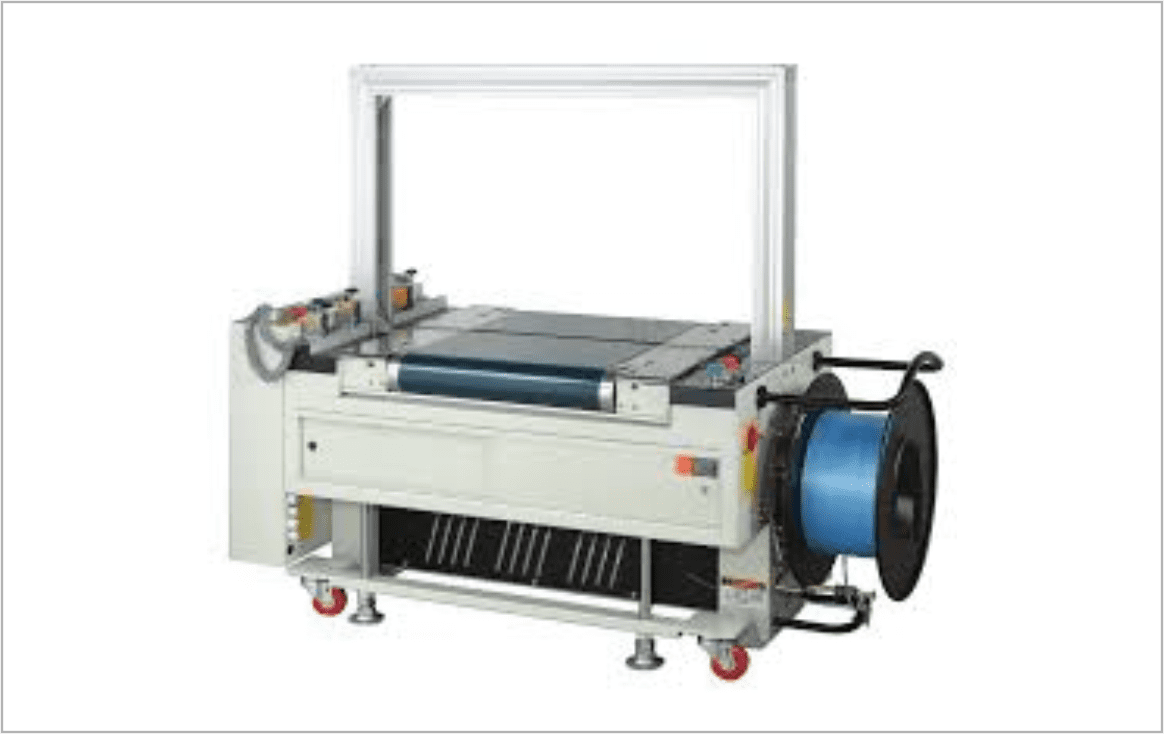

• Modular designed Aluminum alloy arch, easy to assemble and disassemble.
• Auto strap positioning and retry feeding functions enable operating of humanity.
• Convenient operating modes with panel, ball switch and foot pedal switch.
• Internal electricity is 24V accessing, prevent operators from shocking.
• with CKD frame and powder painting on frame.
• Change color on iron arch cover, front doors & frame is available.(Optional)
| Arch Size | 850W x 600H mm (Standard) |
|---|---|
| Power Supply | 110/220V 50/60Hz 1Ph; 220/380V 50/60Hz 3Ph |
| Strap Cycle Speed | 28 Cycles / 60Hz, 26 cycles / 50Hz per Min |
| Tension Strength | Max. 70kgs |
| Strap Width | 6~15.5mm |
| Sealing Method | Heat Sealing |
| Dimensions | 1400W x 640D x 1475H mm |
| Table Height | 805mm |
| Machine Weight | 220kgs |
| Gross Weight | 265kgs |
