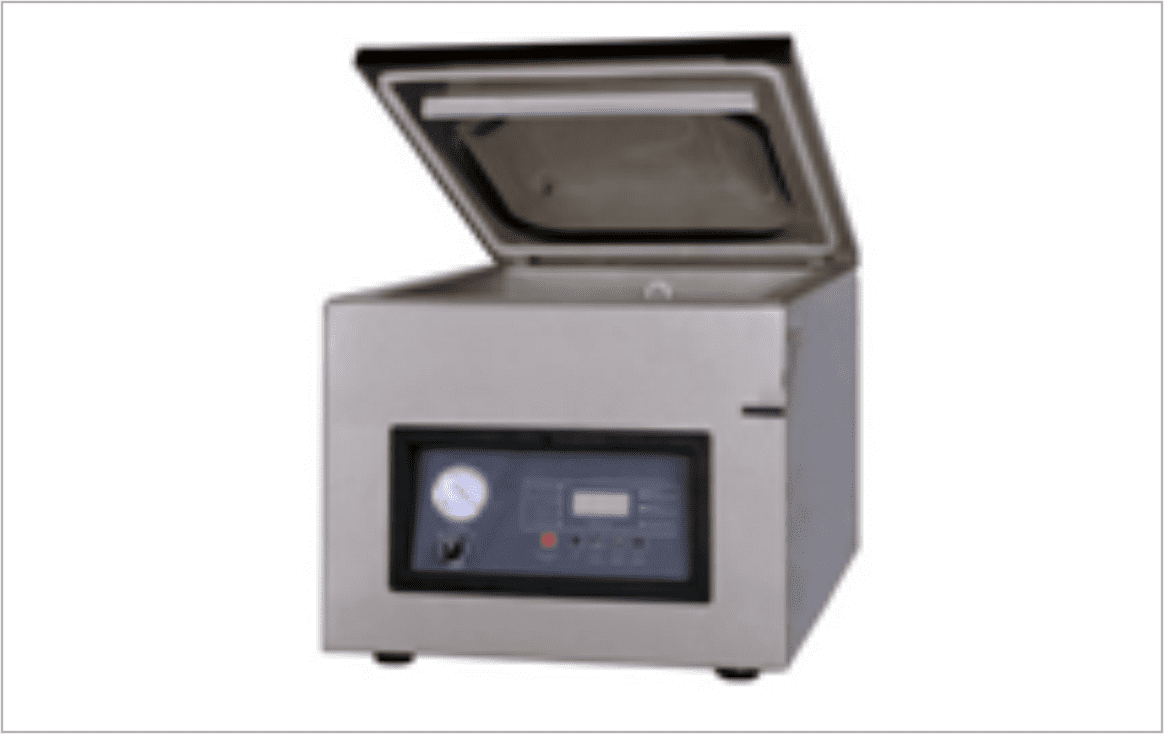

Table Top Vaccum Packaging Machine

Table Top Vaccum Packaging Machine


• The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for long storage.

• Table style vacuum packing machine is compact in structure, easy to operate, can apply in space limited working place.

• The machine is deep in chamber size, which facilitates packing big products.

• Transparent organic glass lid enables users to well monitor the whole work process.

• The vacuum chamber could be added with PP insert plate for products with different heights to improve the vacuum efficiency.

Note: if the function of gas flushing is required, the machine model is DZQ/T series whose technical parameter is similar to DZ /T series.


Model SVPDZ-300/T Single Bar
Voltage (V/Hz) AC 220/50
Motor power (W) 900
Sealing Power (W) 500
Ultimate Vacuum Pressure (Kpa) 1
Sealing Width (mm) 10
Chamber Dimension (L × W × H) (mm) 306 × 456 × 190
Vacuum Pump capacity (m3/h) 20
Material for Vacuum Chamber SS304
External Dimensions (L × W × H) (mm) 486 × 570 × 504
Net Weight (Kg) Approx.30
