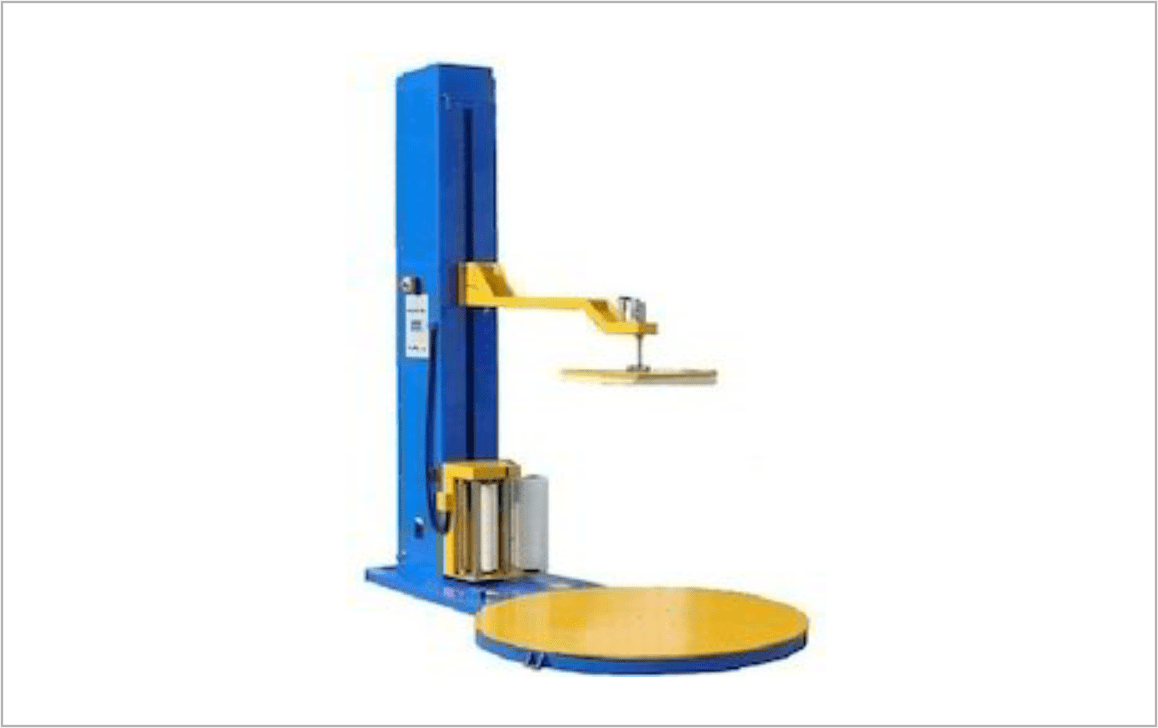

Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine

We offer a stretch wrapping machine in different models. stretch wrapping machines are used for stretch film wrapping around the product. Stretch wrapping machines offered by us are available at most competitive in rates and can custom configured. Stretch wrapping machine assist in reduction of labour by automating the process of attaching, detaching and pressing the film. For the product to be wrapped, the operator simply places the item on a turn-table and switches the machine to operate.

• Heavy duty double-chain carriage lift, calm and safety.

• Carriage door opens for effortless roll change and thread film.

• Film dancer-bar control film output.

• Safety stop to avoid foot crush.

• Hinged mast for easy handling.

• Front & rear Forklift transportable.


Pallet Stretch wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.

Technical Specification:

Model Pallet Stretch Wrapping Machine SPSW 2100
Max Wrapping Size(L x W x H) (Max)(mm) (500 -1200) x ( 500 -1200)
Wrapping Efficiency(loads/hour) 20 - 40
Turntable Speed(rpm/min) 3-12
Turntable Diameter(mm) ø : 1650 / H : 85
Turntable Loading (max)(kg) 2000
Electrical requirement ( V/Hz) 220 / 50
Power (kw) Turntable:0.75 Film, Carriage:0.4; Steel Tower:0.37
Film Carriage Pre-Stretch Type
Control System PLC
Top Plate Device Pneumatic Direct Transmit, Orbit Top Plate
Weight (kg) 800 kg
Machine Dimension (mm) L Type : 2745 x 1650 x 2700 /
H Type : 2745 x 1650 x 3300
